The PZ46 series cartridge seal offers a comprehensive and cost-effective sealing solution for industrial liquid applications. Designed for rotating shaft equipment such as ANSI/DIN pumps, close-coupled pumps, vertical pumps, and similar machinery, this series conforms to key industry pump standards and is readily available.

Features
Specifications
Installation View

Features

Design:
• Optimized design for the running face
• Space-saving cartridge design

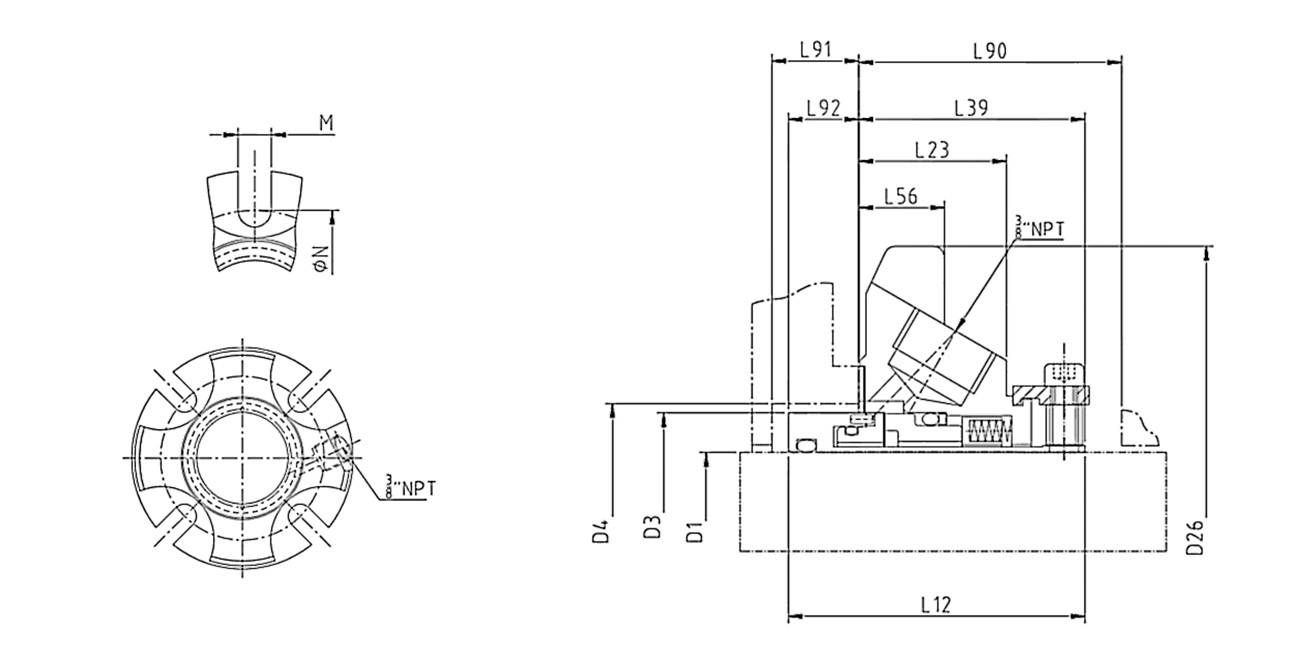

Installation View

PZ46 Standard Bore

SEAL （Inch）	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SEAL （Inch）	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.375	1.626	1.889	4.000	1.989	0.945	1.535	0.598	2.000	0.160	0.453	0.525	2.805
1.125	1.125	1.500	1.752	2.015	4.125	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	2.933
1.250	1.250	1.625	1.874	2.294	4.250	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	3.213
1.375	1.375	1.750	2.000	2.421	4.375	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	3.338
1.500	1.500	1.937	2.252	2.680	4.875	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.525	3.599
1.625	1.625	2.062	2.374	2.812	5.000	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	3.766
1.750	1.750	3.170	2.480	2.918	5.250	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	3.875
1.875	1.875	2.312	2.626	2.918	5.250	2.156	1.031	1.591	0.630	2.187	0.156	0.516	0.562	3.875
2.000	2.000	2.437	2.756	3.015	5.500	2.375	1.031	1.890	0.630	2.375	0.187	0.484	0.562	4.000
2.125	2.125	2.562	2.870	3.360	5.859	2.375	1.169	1.890	0.630	2.375	0.187	0.484	0.687	4.469
2.250	2.250	2.687	3.000	3.485	6.500	2.375	1.169	1.890	0.630	2.375	0.187	0.484	0.687	4.566
2.375	2.375	2.812	3.126	3.610	6.500	2.484	1.283	2.047	0.685	2.528	0.143	0.437	0.687	4.719
2.500	2.500	3.062	3.370	3.891	6.750	2.484	1.283	2.146	0.685	2.625	0.125	0.339	0.687	5.000
2.625	2.625	3.312	3.626	4.062	6.750	2.562	1.193	2.083	0.685	2.562	0.125	0.417	0.687	5.170
2.750	2.750	3.312	3.626	4.062	6.750	2.500	1.193	2.083	0.685	2.562	0.125	0.417	0.687	4.170
2.875	2.875	3.375	3.752	6.750	7.000	2.562	1.291	2.083	0.685	2.562	0.125	0.417	0.687	5.312
3.000	3.000	3.625	4.000	4.469	7.750	2.562	1.315	2.146	0.744	2.625	0.125	0.354	0.812	5.720
3.125	3.125	3.750	4.126	4.600	7.875	2.562	1.161	2.146		2.687	0.125	0.417	0.812	5.845
3.250	3.250	3.750	4.134	4.600	7.437	2.562	1.161	2.094		2.635	0.177	0.469	0.812	5.845
3.375	3.375	4.000	4.374	4.850	8.125	2.562	1.161	2.146		2.687	0.125	0.417	0.812	6.095
3.500	3.500	4.125	4.500	4.975	8.250	2.562	1.161	2.146		2.687	0.125	0.417	0.812	6.220
3.625	3.625	4.218	4.626	5.100	8.375	2.562	1.161	2.146		2.687	0.125	0.417	0.687	6.250
2.750	3.750	4.343	4.724	5.199	8.750	2.562	1.161	2.146		2.687	0.125	0.417	0.687	6.770
3.875	3.875	4.468	4.874	5.375	8.750	2.562	1.161	2.146		2.687	0.125	0.417	0.812	6.636
4.000	4.000	4.593	5.000	5.500	9.000	2.562	1.161	2.146		2.687	0.125	0.417	0.812	6.761

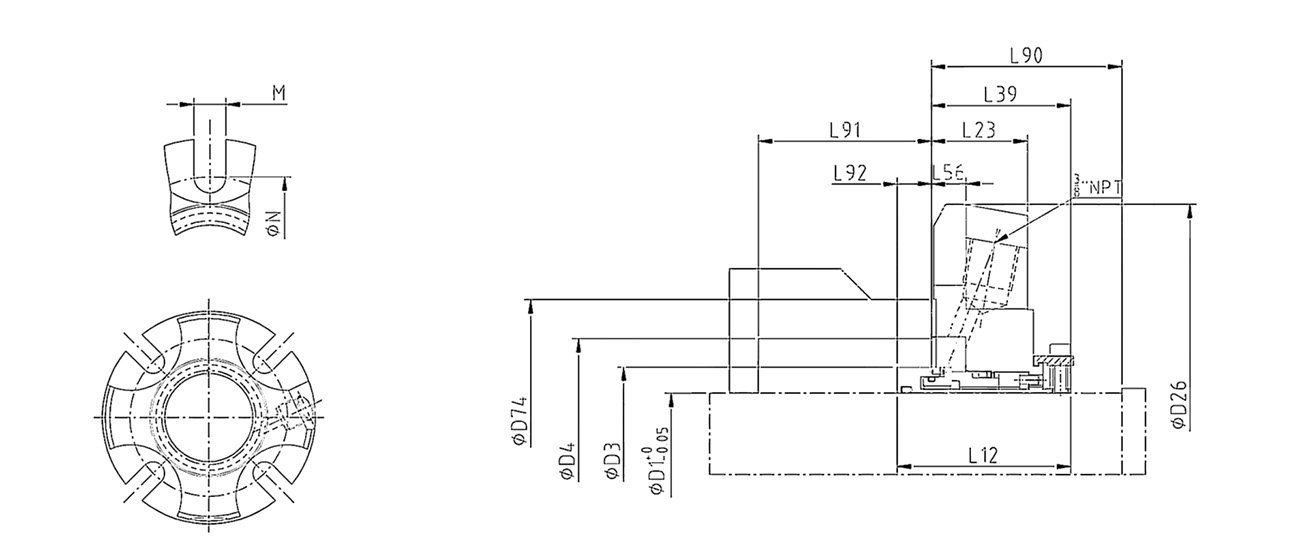

PZ46 Big Bore

23A Big Bore.jpg

Size (Inch)	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
Size (Inch)	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
1.375	1.375	1.75	2.875	3.023	5.375	2.062	0.031	1.579	0.598	2.125	0.125	0.492	0.525	4.062	3.268
1.75	1.75	3.17	3.5	3.925	6.5	2.156	0.031	1.591	0.63	2.187	0.156	0.516	0.562	5.093	3.885
1.875	1.875	2.312	3.625	3.734	6.5	2.156	1.031	1.591	0.63	2.187	0.156	0.516	0.562	5.093	4.125
2.125	2.125	2.562	3.875	4.25	7.156	2.375	0.169	1.89	0.63	2.375	0.187	0.484	0.687	5.687	4.264
2.5	2.5	3.062	4.75	4.875	8	2.484	1.283	2.146	0.685	2.625	0.125	0.339	0.687	6.062	5.139
2.625	2.625	3.312	4.625	4.74	8	2.562	0.193	2.083	0.685	2.562	0.125	0.417	0.687	6.062	5.125
2.75	2.75	3.312	4.75	4.875	8	2.562	0.193	2.083	0.685	2.562	0.125	0.417	0.687	6.062	5.139
